Investigation of Air Flow Inside an Airplane Passenger Cabin

Levent Bilir, Hasan Çelik, Mehmet Barış Özerdem

Abstract

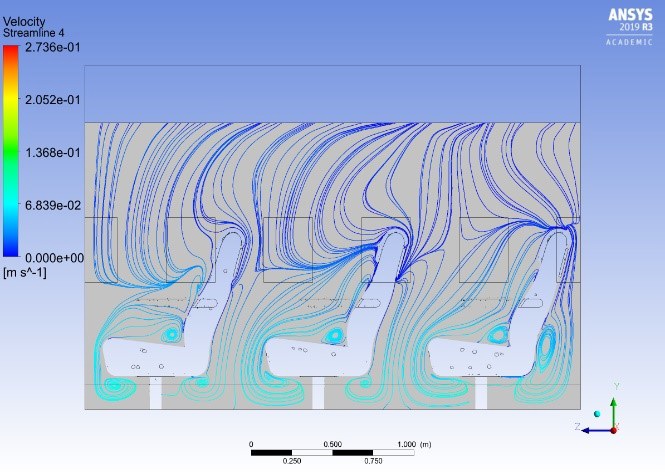

Air flow characteristics are important in passenger cabins of airplane in terms of thermal comfort and health issues. Many parameters such as temperature, air velocity, carbon dioxide level should be controlled during the flight. In the present study, a generic model represents the air flow in a commercial airplane’s passenger cabin has been investigated, numerically. The generic model was considered a half aircraft cabin due to symmetrical conditions. The air flow inside the cabin was analysed for ceiling supply bottom return mixing ventilation system by using Ansys-Fluent software.  As a conclusion, the streamlines of air released from air ducts was obtained and the flow path of air inside the passenger cabin was determined. The flow path of air gives information about the contaminant spread inside the cabin, as well. The results revealed that for the investigated air ventilation system, there was no significant air recirculation for different seat rows. But the air recirculation on seats at the same row was at higher level.

Full Text:

PDF

References


Hosni M, Jones BW. Measurement of Ain an Aircraft Cabin using Particle Imaging Velocimetry Technique, 4th International Conference on Indoor Air Quality, Ventilation and Energy Conservation in Buildings; 2-5 October 2001, Changsha, China.

Hosni M, Jones BW. Application of Particle Image Velocimetry for the Measurement of the Airflow Characteristics in an Aircraft Cabin, ASHRAE Transactions,109,101-110, 2003.

Lebbin PA, Hosni M, Jones BW, Beck BT. Feasibility Study of Using Various Instrumentation for Measurement of Air Velocity and Turbulence Intensity in a Test Room, ASHRAE Transactions, 111, 54-59, 2005.

Lin C, Wu T, Horstman R, Lebbin P, Hosni M, et al. Comparison of LED Simulation Predictions with PIV Data for the Airflow in a Generic Cabin Model, HVAC&R Research, 12, 935-951, 2006.

Mazumdar, S., Chen, Q. A One-Dimensional Analytical Model for Airborne Contaminant Transport in Airliner Cabins, Indoor Air, 19, 3-13, 2009.

Fiser, J., Jicha, M. Impact of Air Distribution System on Quality of Ventilation in Small Aircraft Cabin , Building and Environment, 69, 171-182, 2013.

Cao, X., Liu, J., Pei, J., Zhang, Y., Li, J., Zhu, X. 2D-PIV Measurement of Aircraft Cabin Air Distribution with a High Spatial Resolution, Building and Environment, 82, 9-19, 2014.

Yang, S., Sun, X., Yu, T, Chen, X. Research on the Numerical Simulation of Aircraft Cabin Smoke, Procedia Engineering,, 121, 357-364, 2015.

Maier, J., Marggraf-Micheel, C., Dehne, T, Bosbach, J. Thermal Comfort of Different Displacement Ventilation Systems in an Aircraft Passenger Cabin, Building and Environment, 111, 256-264, 2017.

Zhang, Y., Liu, J., Pei, J., Li, J., Wang, C. Performance evaluation of different air distribution systems in an aircraft cabin mockup, Aerospace Science and Technology 70, 359-366, 2017.

Kotb, H., Khalil, E.E. Numerical Simulation of Airflow and Airborne Pathogen Transport in Aircraft Cabins: Dynamic Mesh Analyses, AIAA SCientific Forum, Orlando, FL, 6-10 January 2020.
